VOLTAGE REGULATOR RECTIFIER HONDA GROM

$169.99
SKU: RMS020107241

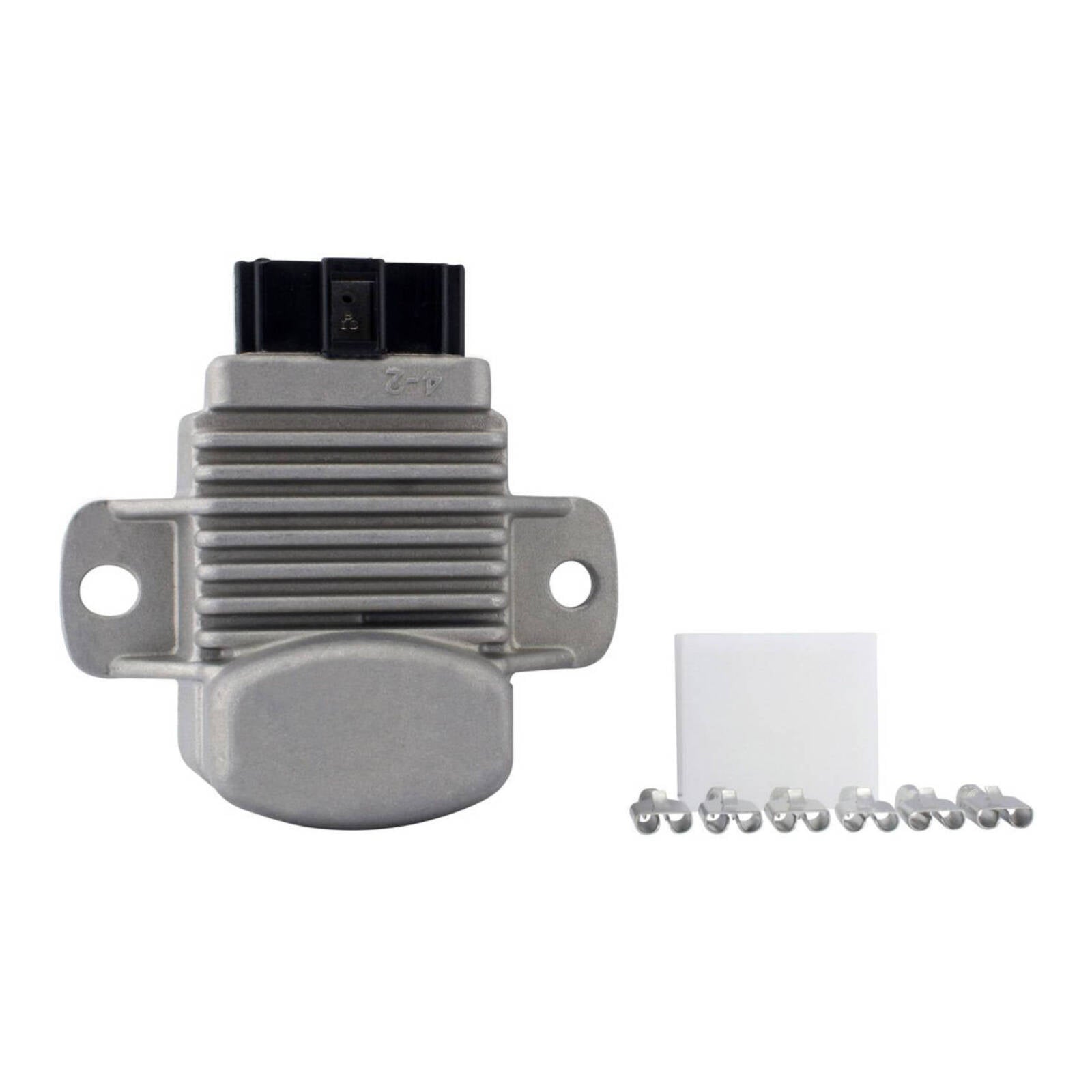

Brand new aftermarket Voltage Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • No assembly required
  • Higher-grade of electric components
  • The quality exceeds the OEM equipment
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

Specifications:

Dimensions: p>

  • Width: 81 mm
  • Length: 78 mm
  • Height #1: 20 mm
  • Height #2: 32 mm
  • Distance between fixation holes center to center: 67 mm

Other specifications:

  • Number of plugs: 1
  • Number of pins: 6
  • Minimum Charging Voltage: 14.5 V +- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20°C to 85°C
