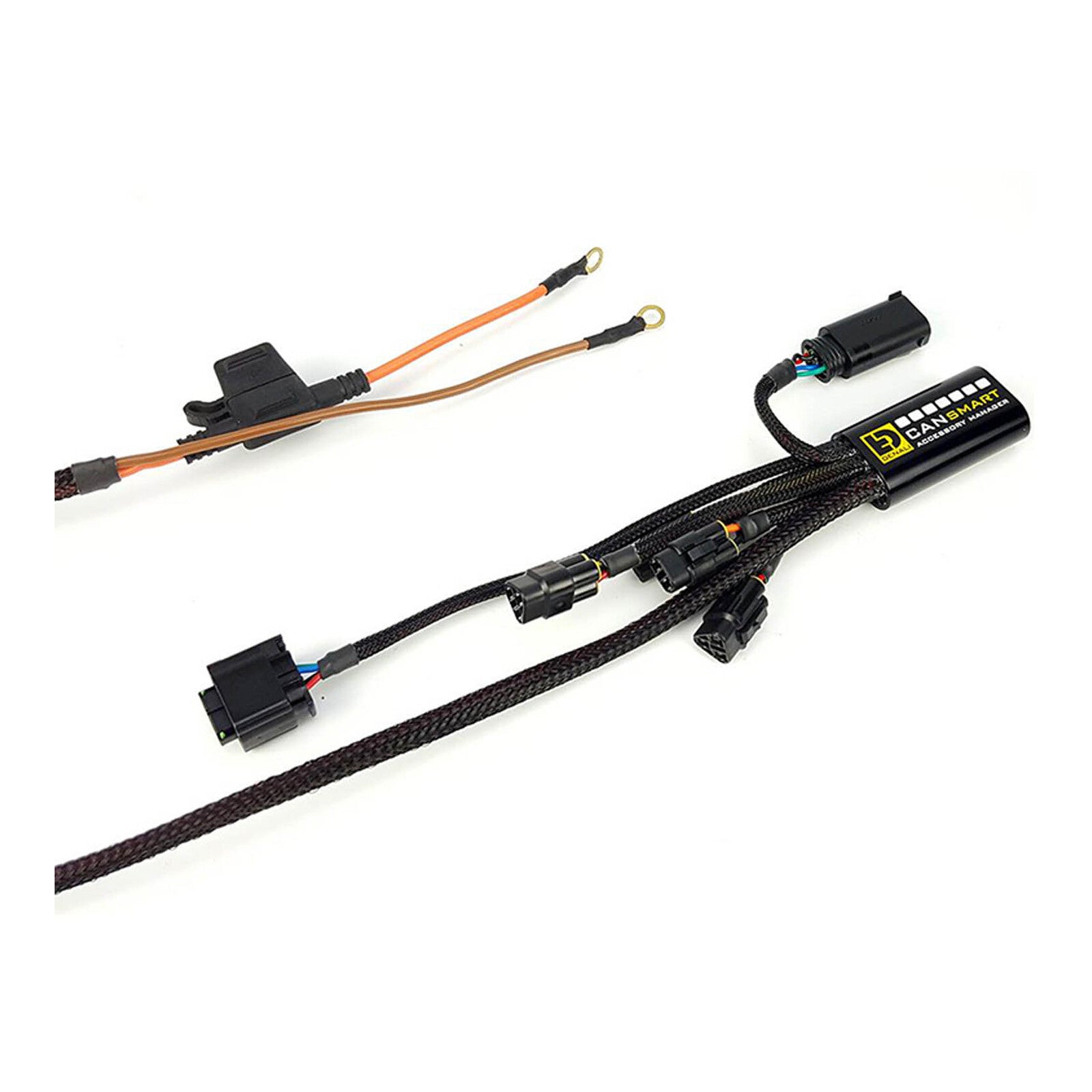

DENALI CANsmart™ Controller For BMW R1200 Series Motorcycles


The four dedicated circuits are pre-programmed to connect and independently control two sets of DENALI 2.0 lights, a SoundBomb Horn, and our B6 auxiliary brake light. However, our clever "simple circuit override" feature will let you run any accessory of your choice on any of the four circuits.

The two auxiliary light circuits enable independent adjustment of high and low beam brightness right from the vehicle's "WonderWheel". It also features a "flash to pass" and "strobe when Horn active" setting that will strobe the auxiliary lights when you pulse your highbeam switch or sound your Horn.

The feature-rich brake light circuit will transform a simple 2-wire brake light into a "smart brake light" complete with running light, multiple flash patterns, and deceleration activated braking functionality.

The Horn circuit enables the addition of an auxiliary Horn without having to add a relay and dedicated Horn wiring harness.

Plug-n-Play Installation

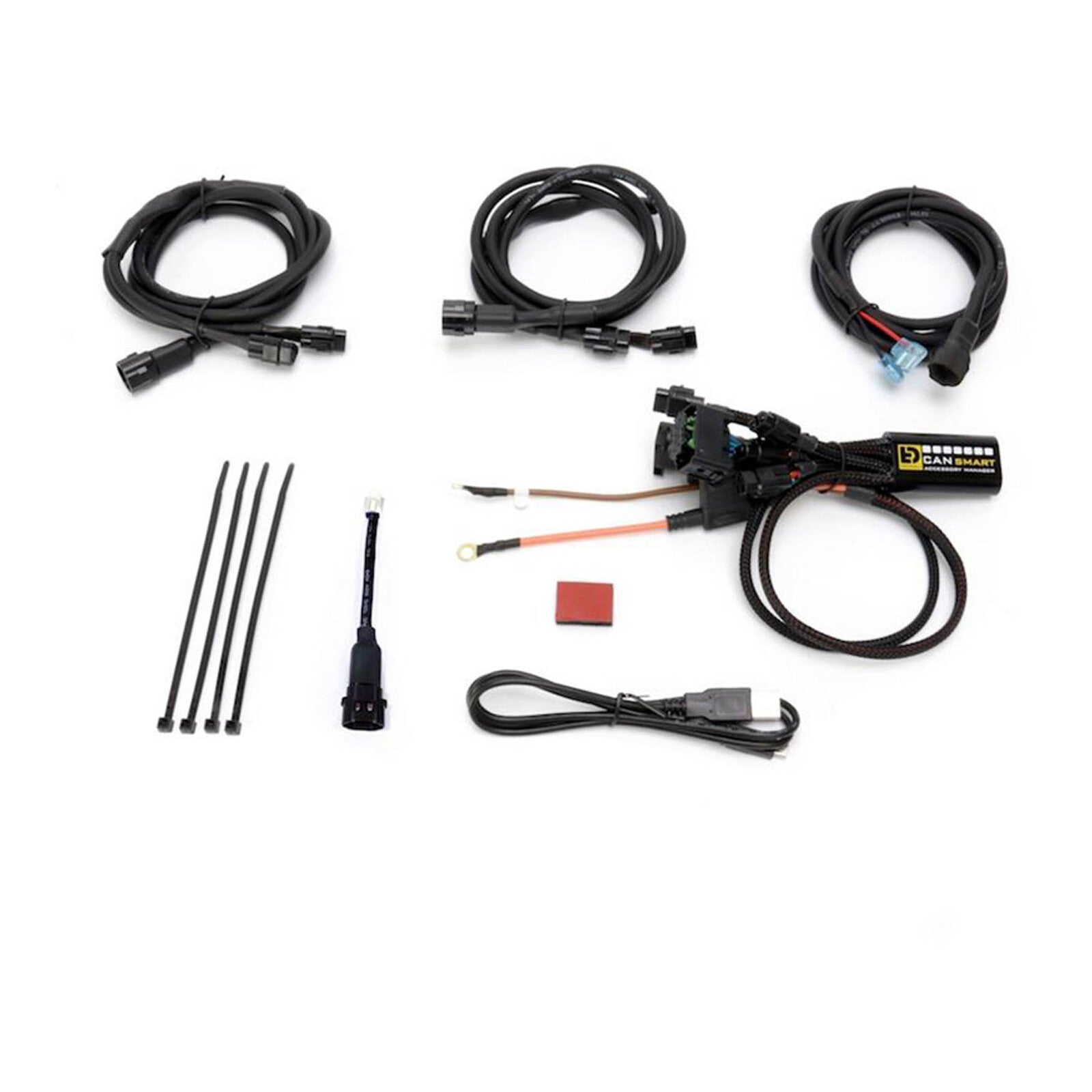

Preset for DENALI 2.0 Accessories with Light and Horn Harness Extensions Included

  1. Plug in the CANsmart™ Controller TheCANsmart™ unit connects to the motorcycle’s CANbus electrical system through the tire pressure monitor (RDC) connector, which is located under the passenger seat.
  2. Route the Wires Route the battery lead to the battery box. Connect the included Horn extension harness and light extension harnesses to the CANsmart™ unit and route the leads upto your installed accessories.
  3. Connect to the Battery Connect the positive and ground ring terminals from the CANsmart™ unit to your battery.
  4. Connect your Accessories Simply connect your accessories and you’re are ready to ride. No custom programming is required as the default settings are already preset for two sets of auxiliary lights, a Horn, and an auxiliary brake light.
Controlling Accessories

From the Motorcycle's Original Controls

  • Auxiliary Lights On/Off Press the turn signal cancel button for three seconds to turn on/off light set #1, or pulse three times fast to turn on/off light set #2.
  • Dimming Auxiliary Lights Hold the"WonderWheel" left (for light set one) or right (for light set two) for three seconds to enter dimming mode. You can then scroll the wheel up or down to customize the high and low beam intensity for each set of lights.
  • Flash to Pass Don't forget about the "Flash to Pass" feature; pulse your high beam switch three times fast and your auxiliary lights will strobe for two seconds at full intensity.
  • Strobe with Horn If you really need to get someone's attention, fire off your Horn and your auxiliary lights will strobe at full intensity as long as your Horn button is pressed.
